Product introduction:

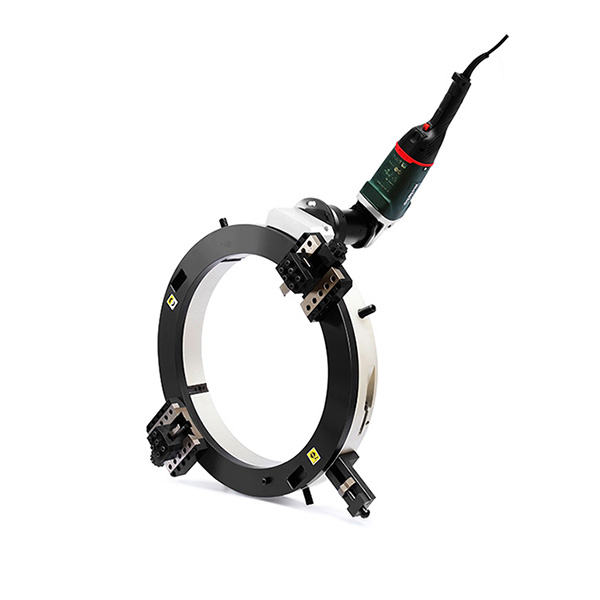

ODM series electric pipe cutting beveling machine is a portable beveling equipment, which has the characteristics of relatively light weight, small radial space, easy use, simple maintenance, etc. It can be conveniently and quickly installed on complex series pipelines for cutting and beveling. This product is widely used in pipeline installation projects and emergency repair operations in petrochemical, natural gas, food, boiler, pharmaceutical, nuclear power, shipbuilding and other industries.

Product performance:

1. It is suitable for processing all kinds of heat-resistant steel and stainless steel large-diameter wall thickness pipes, and the processing wall thickness can reach 120mm.

2. On line installation, pipe cutting groove shall be completed at one time.

3. The powerful motor is installed in variable position, which is suitable for narrow space operation.

4. Completely cold cutting, without affecting the pipe material, to ensure its wide applicability.

5. Split design, automatic and manual feed mode, easy to operate.

6. Different forms of groove can be processed according to customer requirements, single "V", double "V" and "U" type.

7. It can be driven by hydraulic (speed regulation), electric, pneumatic and servo motors.

8. Mataibao motor is equipped with high torque, powerful power, good heat dissipation, motor soft start protection and overload power failure protection.

Voltage: 220V, frequency: 50Hz, power: 1.6-2.6KW

Technical parameters:

Note: If the wall thickness is more than 30mm, it is recommended to purchase hydraulic drive. It should be stated before ordering. According to the requirements for cutting groove, a heavy-duty cutting groove tool holder should be configured
